MJ30系列所有型号
| 零件号 | 额定电压 | 额定电流（安培） | 兼容保险丝座 | 固定中心 |
| 20MJ30-8 | 415Vac | 20 | JW3 | 82mm |
| 25MJ30-8 | 415Vac | 25 | JW3 | 82mm |
| 32MJ30-8 | 415Vac | 32 | JW3 | 82mm |
| 40MJ30-8 | 415Vac | 40 | JW3 | 82mm |
| 50MJ30-8 | 415Vac | 50 | JW3 | 82mm |
| 63MJ30-8 | 415Vac | 63 | JW3 | 82mm |
| 80MJ30-7 | 415Vac | 80 | JW3 | 82mm |
| 100MJ30-7 | 415Vac | 100 | JW3 | 82mm |
| 125MJ30-7 | 415Vac | 125 | JW3 | 82mm |
| 160MJ30-7 | 415Vac | 160 | JW3 | 82mm |
| 200MJ30-7 | 415Vac | 200 | JW3 | 82mm |
| 250MJ30-7 | 415Vac | 250 | JW3 | 82mm |
| 315MJ30-7 | 415Vac | 315 | JW3 | 82mm |
一般规范
| 产品名称 | Eaton Bussmann系列低压英制标准保险丝 |
| Catolog编号 | 100MJ30-7 |
| 额定电压 | 415V |
| 额定电流 | 100A |
| 数据表 |
|
| 产品长度/深度 | 110 mm |
| 产品高度 | 31mm |
| 产品宽度 | 31 mm |
| 重量 | 155.4g |
| 合规性 | CE认证，符合RoHS |
| 保险丝类型 | MJ30 |
| 保险丝形状 | 双槽螺栓标签 |
| 结构尺寸 | J |

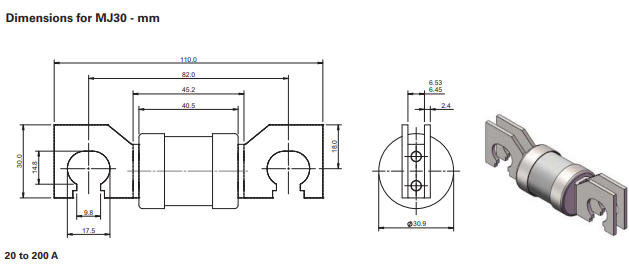

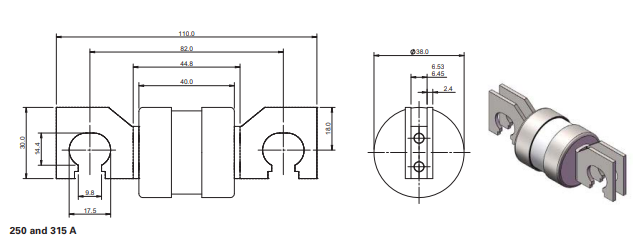

尺寸
